10 dBi, 5 GHz Omni Antenna
[ANT-CO10-5]

$115.00
incl. GST

10 dBi, 5 GHz Omni Antenna

Click to enlarge

Applications

5.7 ~ 5.8 GHz WLAN systems.
WiFi channels 149 to 165
Compatible with 802.11a,n
Long-distance transmission
Point to Multi-point systems

Features

High gain, Low VSWR
Lightweight fibreglass radome
DC Grounded lightning protection
Vertical polarization
Supplied with pole mounting kit

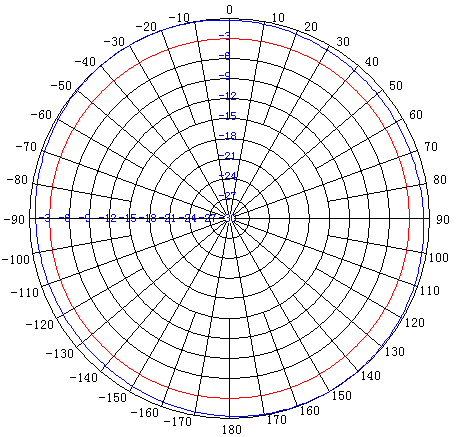

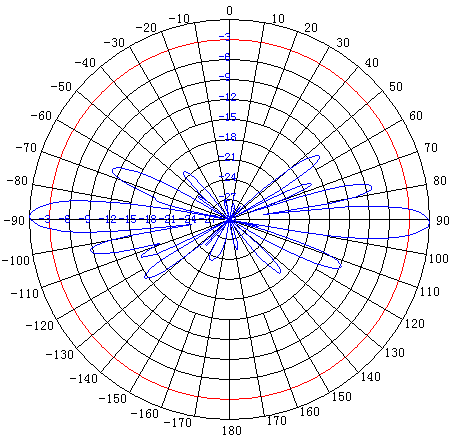

Antenna Patterns

These are the E&H patterns for each antenna.

H Pattern	E Pattern
Click image to expand	Click image to expand

Specifications

Frequency range	5725 to 5850 Mhz
Channel range	149 to 165
Bandwidth	125 MHz
Gain	10 dBi
Beamwidth	E: 10 degrees H: 360 degrees
VSWR	≤ 1.5
Impedance	50 ohms
Polarisation	Vertical
Max. power	100 W
Connector	N-female
Dimensions	20 x 430 mm
Mass	0.35 kg
Pole diameter	25 to 51 mm

This product was added to our catalog on Tuesday 27 April, 2010.
