Carrier Class MIMO Base Station Sector Antenna
This antenna is designed to be used for a central base-station for Wireless-N applications in the 5 GHz band.
It is a dual-polarity (Horizontal and Vertical), 120-degree coverage sector antenna. Three units on a single pole gives 360 degree coverage.
It is designed to suit the Ubiquiti RocketM5.
World Class Antenna Designs
Patent-pending next-generation technology achieves gain, cross-pol isolation, and beamshaping characteristics rivaling the highest quality cellular carrier basestation antennas in the world. Instantly pair with a RocketM5 to create a powerful AirMax 2x2 MIMO PtMP BaseStation. Rocket mount and weatherproof RF jumpers included.
RocketM Seamlessly Integrates with AirMax BaseStation Sectors
RocketM and AirMax BaseStation/Rocket Antennas have been designed to seamlessly work together. Installing a RocketM on this antenna requires no special tools; you simply snap it into place with the mount provided with the Antenna.
Click image to enlarge

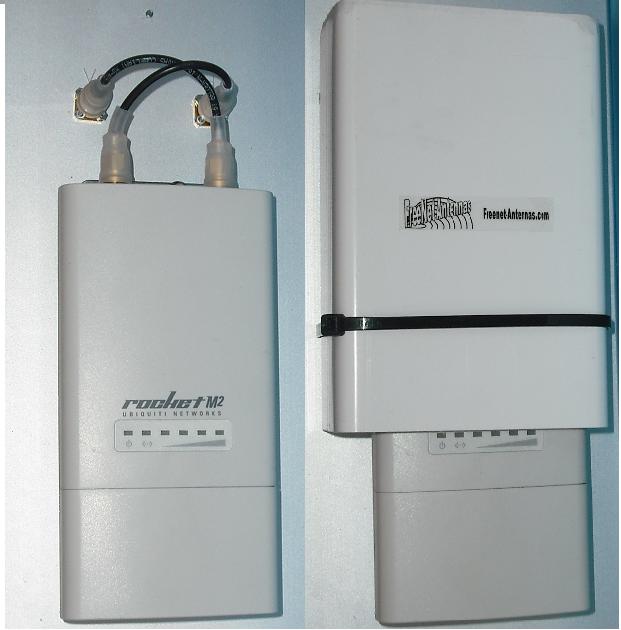

The Rocket Cover - ZAL
For extra protection for the pigtail cables and connectors, we recommend the Rocket Cover - ZincAlum.
Click image to enlarge
Specifications
| Frequency range | 5.10-5.90 GHz
|
|---|
| Gain | 15.0-16.0 dBi
|
|---|
| Polarisation | Dual, Linear (H & V)
|
|---|
| Cross-pol isolation | 22 dB minimum
|
|---|
| VSWR | 1.5:1 (max.)
|
|---|
| Hpol beamwidth | 137 deg (6 dB)
|
|---|
| Vpol beamwidth | 118 deg (6 dB)
|
|---|
| Elevation beamwidth | 8 deg
|
|---|
| Electrical downtilt | 4 deg
|
|---|
| Dimensions | 367 x 63 x 41 mm
|
|---|
| Pole dia | Min: 20mm
Max: 85mm
|
|---|
| Weight | 1.1 kg
|
|---|
| Windloading | 190 km/h
|
|---|
