Active Power over Ethernet (POE) is required where the ethernet cable (CAT5) is longer than 20m. Active POE uses a higher voltage on the CAT5 cable to reduce the DC current, and hence the resistive voltage loss in the cable. The unit includes surge protection on the CAT5 data leads. This provides significant protection to the Ethernet signal leads if there is a nearby lightning strike.
This Active POE Injector is suitable for use with:
- Any POE compatible device that needs appox. 18 VDC. (e.g. IP Cameras, some VoIP phones, ..)
- Ubiquiti™ Products.
Typical Use

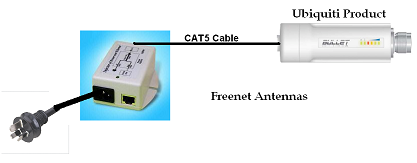

The usual use of the POE Set is shown in the diagram below. Note: All items in the diagram except the Injector are not included in this product.
Pinouts
| Pin | RJ45 Input | RJ45 Output
|
|---|
| Signal | Description | Signal | Description
|
|---|
| 1 | RX+ | Data Receive | RX+ | Data Receive
| | 2 | RX- | Data Receive | RX- | Data Receive
| | 3 | TX+ | Data Transmit | TX+ | Data Transmit
| | 4 | NC | No Connection | 48VDC + | DC Power +
| | 5
| | 6 | TX- | Data Transmit | TX- | Data Transmit
| | 7 | NC | No Connection | 48VDC - | DC Power -
| | 8
|
802.3af Compatibility
This unit is NOT 802.3af compatible. It has an 18 VDC output. 802.3af specifes 48 VDC (typ.) output.
If you would like an active POE injector for 802.3af devices, please see our POE Active Injector - 48V.
What You Get
- Injector
- Australian AC Power cord
- 12 month warranty
Specifications
| Power over Ethernet
|
|---|
| AC Input | 90 ~ 264 VAC
| | DC Output | Voltage: 18 VDC
Current: 1000 mA (max.)
18W (max.)
| Protection
Any of these cases will cause an Auto-Reset.
| Short Circuit:
- Any output shorted to ground. | Overload:
- Current over 2000 mA
| High Voltage:
- Voltage on output lines over 24V.
| | Temperature | Storage: -10 to +70 C
| | Operating: 0 to +60 C
| | Humidity | 5 to 90 %
| | Case | ABS Plastic
| | Colour | Grey
| | Dimensions | 85 x 76 x 37 mm
including mounting flange.
| | Weight | 150 g
| | Approvals | CE, FCC, C-Tick
| | Surge Protection
|
|---|
| Pins protected | 1,2,3, 6
| | Protection mode | Common mode
| | Clamping voltage | 7.5 V
| | Peak pulse current | 5.4 A
| | Shunt Capacitance | < 2 pF
| | Data rate | 100 Mbps
| | ESD tested | to +/- 4000 V
|
Power Over Ethernet Cable Lengths
Click image to enlarge
| Click on the image to see the maximum POE cable lengths for various Ubiquiti devices and POE injectors
|
