Vertical omni, with low visual impact.

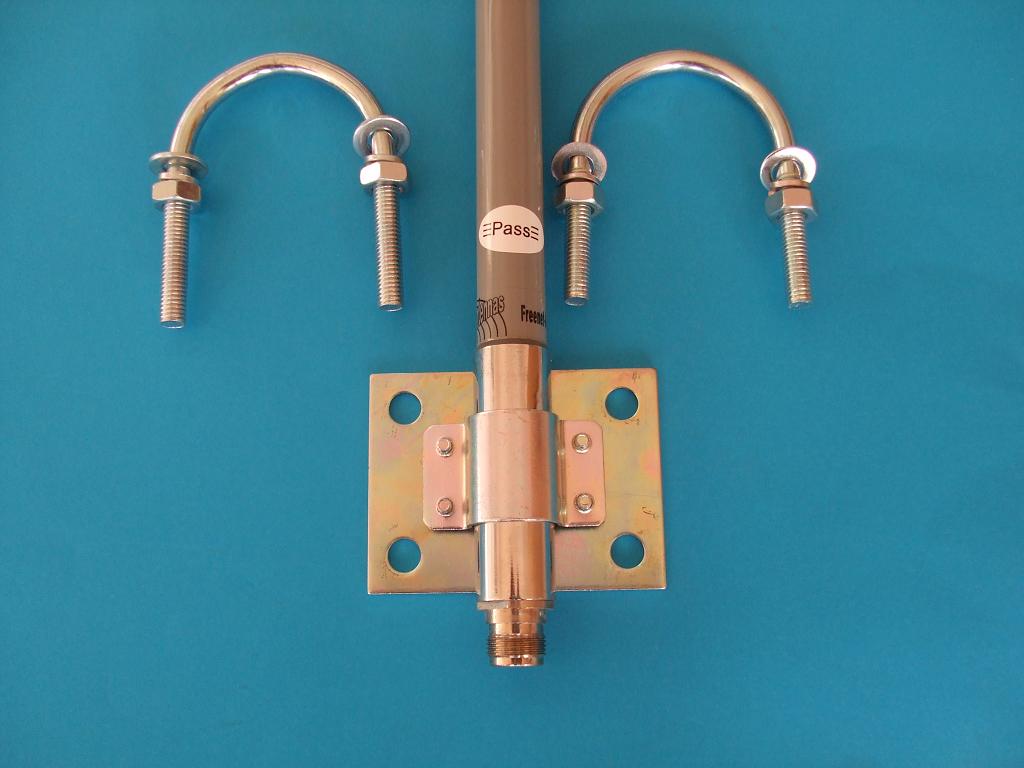

Mounting
While the antenna is weatherproof, the antenna cable connection needs to be weatherproofed after installation. We recommend wrapping each connection with Conforming Tape. See options below.
Antenna Patterns
Specifications
| Gain | 9 dBi
| | Compatibility | All 2.4 GHz WiFi technologies (802.11b, 802.11g, 802.11n ,...)
| | Beamwidth | Horizontal: 360 deg.
Vertical: 13 deg.
| | Polarization | Vertical |
| Connector | N Female |
| Max. Power | 50 W |
| Impedance | 50 ohm |
| Length | 800 mm |
| Diameter | 20 mm |
| Pole diameter | 25 ~ 50 mm |
| Available Options: |
| Conforming Tape: |
|
|
