High quality Yagi antenna in its own radome. Ideal for pole mounting on (e.g.) an existing TV mast.
This antenna is specially built to Freenet Antennas' specifications. We worked with the manufacturer to alter the existing design to achieve exceptional weatherproofing, as well as support for both Horizontal and Vertical polarisation.
Mounting
Comes with a free pole-mount kit.
Specifications
| Frequency | 2400-2482 Mhz |
| Compatibility | 802.11b (11 Mbps) WiFi,
802.11g (54 Mbps) WiFi
802.11n Wireless-N
2.4 GHz video transmitters/receivers |
| Max. Gain | 16 dBi |
| Polarization | Vertical or Horizontal |
| Beam width - Horiz. | 25 deg. |
| Beam width - Vert. | 18 deg. |
| Connector | N-type Female |
| Impedance | 50 ohm |
| Dimensions | 650 x 140 x 75 (L x W x D) mm |
| Mass | 0.95 kg |

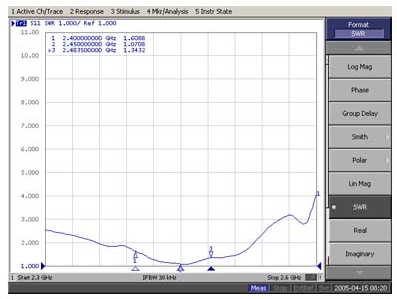

SWR Plot

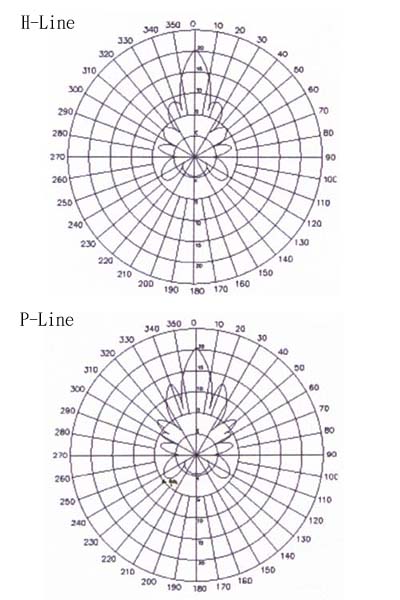

Radiation Patterns
Click image to enlarge
|
