The ultimate War Driving antenna!
The Stick-Mag(tm)
Includes the following:
- 9 dBi Colinear omni antenna. Available without antenna.
- N-type male to N-type male joiner.
- 125mm diameter magnetic base (with non-scratch, rubber covering)
- Integrated N-type female connector. Do not be fooled by other magnetic bases with 'UHF' connectors, sold for WiFi (2.4 GHz use). The 'UHF' connector is only rated to 0.5 GHz; you will loose a lot of signal in that connector.
- 3m of low-loss CFD200 cable. Again, don't buy mag-bases with cheaper "RG-58" cable, which is too lossy at 2.4 GHz. You will loose signal.
- Cable is terminated in an rpSMA (female center) connector.

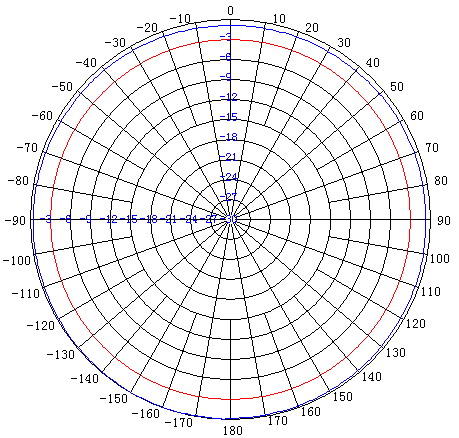

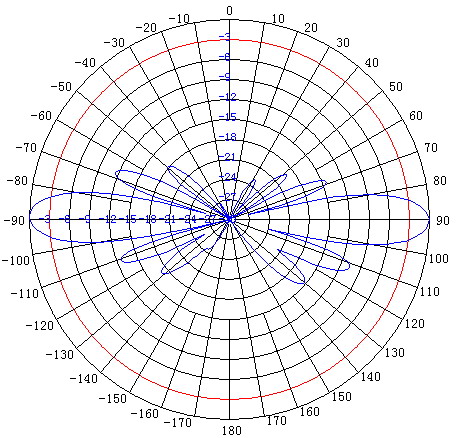

Antenna Patterns
Magbase Specifications
| Diameter | 125mm |
| Lower surface | Non-scratch, rubber-like |
| Connector | N-type Female |
| Cable type | Low-loss CFD200 |
| Cable length | 3 m |
| Cable termination | rpSMA (female center) |
Antenna Specifications:
| Beamwidth | 360 degree |
| Max. Gain | 9 dBi |
| Polarization | Vertical |
| Connector | N Female |
| Max. Power | 50 W |
| Impedance | 50 ohm |
| Length | 0.8 m |
|
