Epoxy coated, die-cast aluminium, parabolic grid antenna, with integrated LOW NOISE dipole feed.
The feed has a sub-reflector to reject unwanted, nearby signals from reaching the receiving dipole. In urban areas (with increasing WiFi 'noise' from neighbouring APs), this feature results in improved SNR (Signal to Noise Ratio) and faster data transfers.
Performance
We continue to hear stories from our customers saying how these antennas outperform other grid antennas with apparently the same gain. See this link for some real world results from one of our customers.
Mounting
Includes a free pole mount kit.
Complete Kit Available
 | This antenna is available as part of a complete MnM Kit. |
Specifications:
| Frequency range | 2400-2483 MHz |
| WiFi standards | 802.1b/g/n |
| Max. Gain | 19 dBi |
| Polarization | Vertical or Horizontal |
| Connector | N Female |
| Impedance | 50 ohm |
| Horizontal Beamwidth | 12 deg |
| Vertical Beamwidth | 16 deg |
| F/B Ratio | ≥25 |
| VSWR | ≤1.5 |
| Max. Power | 100 W |
| Dimensions | 0.4×0.6 m |
| Mass | 2.4 kg |
| Rated Wind Velocity | 60 m/s |
|
Antenna Plots
Click on images to enlarge.

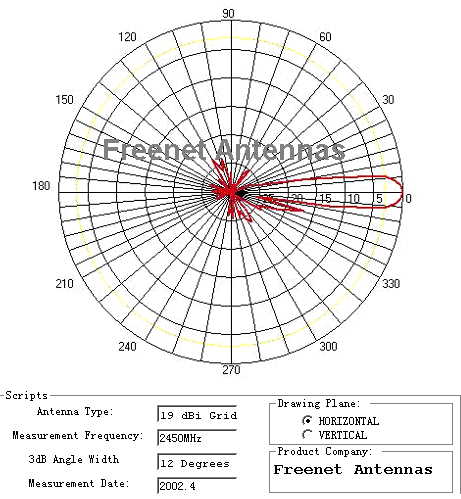

Horizontal beam width, assuming Vertical polarisation.

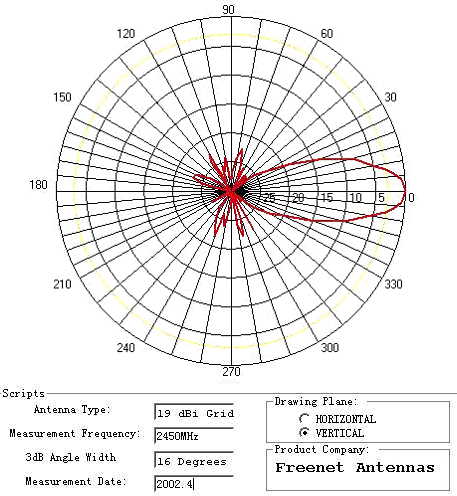

Vertical beam width, assuming Vertical polarisation.
|
|
