Active Power over Ethernet (POE) is required where the ethernet cable (CAT5) is longer than 20m. Active POE uses a higher voltage on the CAT5 cable to reduce the DC current, and hence the resistive voltage loss in the cable.
This Active POE Splitter is suitable for use with:
- Our Active POE Injector.
- Any 802.3af compliant power source (eg an 802.3af POE switch).

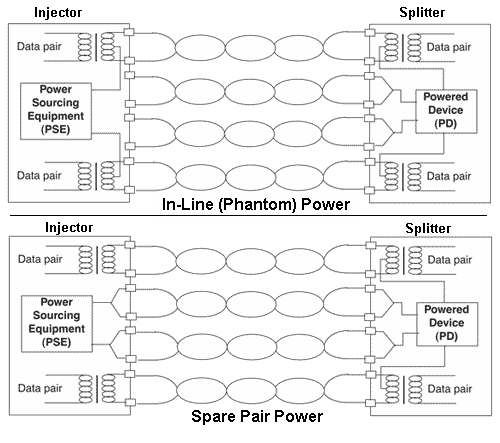

- Cisco™ Power Injectors. Sometimes called 'in-line' power. This uses CAT5 conductors 1,2,3, and 5 in a phantom fashion.
- CAT5 cable lengths of up to 150m
Typical Use

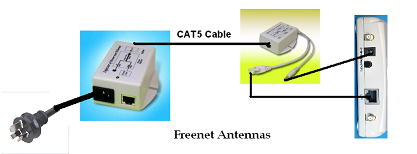

The usual use of the POE Set is shown in the diagram below. Note: All items in the diagram except the Splitter are not included in this product.
Pinouts
Click to enlarge
| Pin | RJ45 Input | RJ45 Output
|
|---|
| Signal | Description | Signal | Description
|
|---|
| 1 | RX+ | Data Receive | RX+ | Data Receive
| | 2 | RX- | Data Receive | RX- | Data Receive
| | 3 | TX+ | Data Transmit | TX+ | Data Transmit
| | 4 | 48VDC + | DC Power (+) | NC | No Connection
| | 5
| | 6 | TX- | Data Transmit | TX- | Data Transmit
| | 7 | 48VDC - | DC Power (-) | NC | No Connection
| | 8
| | DC Output
|
|---|
| Centre | 12 VDC +
| | Outside | Ground (0 VDC)
|
802.3af Compatibility
The POE Standard 802.3af defines certain limits and behaviours for both ends of the POE link. This splitter meets all 802.3af specifications.
What this means is that you can safely use this splitter with any 802.3af compatible power injector, such as our POE Active Injector, or any 802.3af compatible POE switch.
Specifications
| DC Input | 40 to 60 VDC
| | DC Output | Voltage: 12 VDC regulated
Current: 1 A (max.)
| | Temperature | Storage: -40 to +85 C
| | Operating: -25 to +60 C
| | Humidity | 5 to 90 %
| | Case | ABS Plastic
| | Colour | Grey
| | Dimensions | 85 x 76 x 36 mm
Including mounting flange
| | Isolation | 100 MOhms
1500 Vrms
| | Weight | 110 g
| | Approvals | CE, FCC, C-Tick, EN 55022
| | Standards | 802.3af and Cisco™ In-line power.
| | CAT5 cable length | 150 m (max)
| | DC Plug | Length: 12mm
OD: 5.5mm
ID: 2.1mm
Polarity: Inside (+), Outside (-)
| | DC Cable Length | 30 cm
| | Warranty | 12 months |
Available Cable Options
You can order below with pre-made, outdoor rated CAT5 cables, complete with RJ45 connectors attached. One 20m cable comes with a PG9 cable gland to suit a 16mm hole in an enclosure.
|
