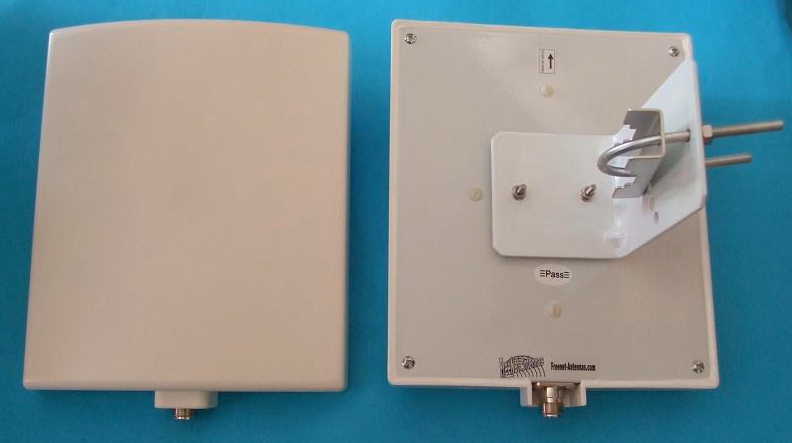

This is a directional panel antenna with a free pole mount kit. A pair of these antennas pointed to each other, with 90mW UltraWAPs will comfortably do a 5 km WiFi link.
If you prefer a 12 dBi antenna with a free wall-mount kit, see this link.
Click image to enlarge
Features
- Ideal for Point-to-Point (PtP) applications.
- High gain with low VSWR.
- Compatible with all WiFi technologies (802.11b, 802.11g, 802.11n, ...)
- Low visual impact.
- Weatherproof.
- Free pole mount with Azimuth and Elevation adjustments.
Mounting
This antenna comes with a free pole-mount kit. If you prefer a 12 dBi antenna with a free wall-mount kit, see this link.
While the antenna is weatherproof, the antenna cable connection needs to be weatherproofed after installation. We recommend wrapping each connection with Conforming Tape. See options below.
Complete Kit Available
 | This antenna is available as part of a complete MnM Kit. |

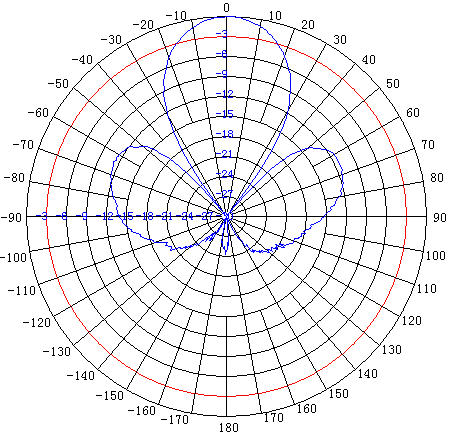

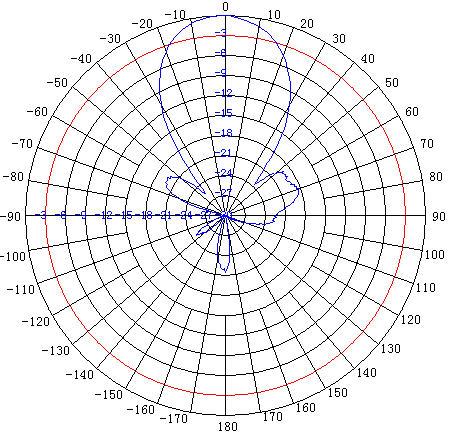

Antenna Patterns
Specifications
| Frequency range | 2400~2483 MHz (WiFi band)
| | Gain | 12 dBi
| | Beam width | Horizontal: 35 degrees
Vertical: 35 degrees
| | VSWR | ≤1.5
| | Impedance | 50 ohm
| | Polarization | Vertical
| | Max. power | 50 W
| | Connector | N Female
| | Dimensions | 220 x 190 x 45 mm
| | Weight | 0.8 kg
| | Pole dia. | 25 ~ 50 mm
|
